Single Customization Payload Integration Kit

2 kg

Maximum payload capacity

5V / 16V

Maximum power (at 2A)

MAVLink

Open standard

Designed to fit seamlessly to your use case

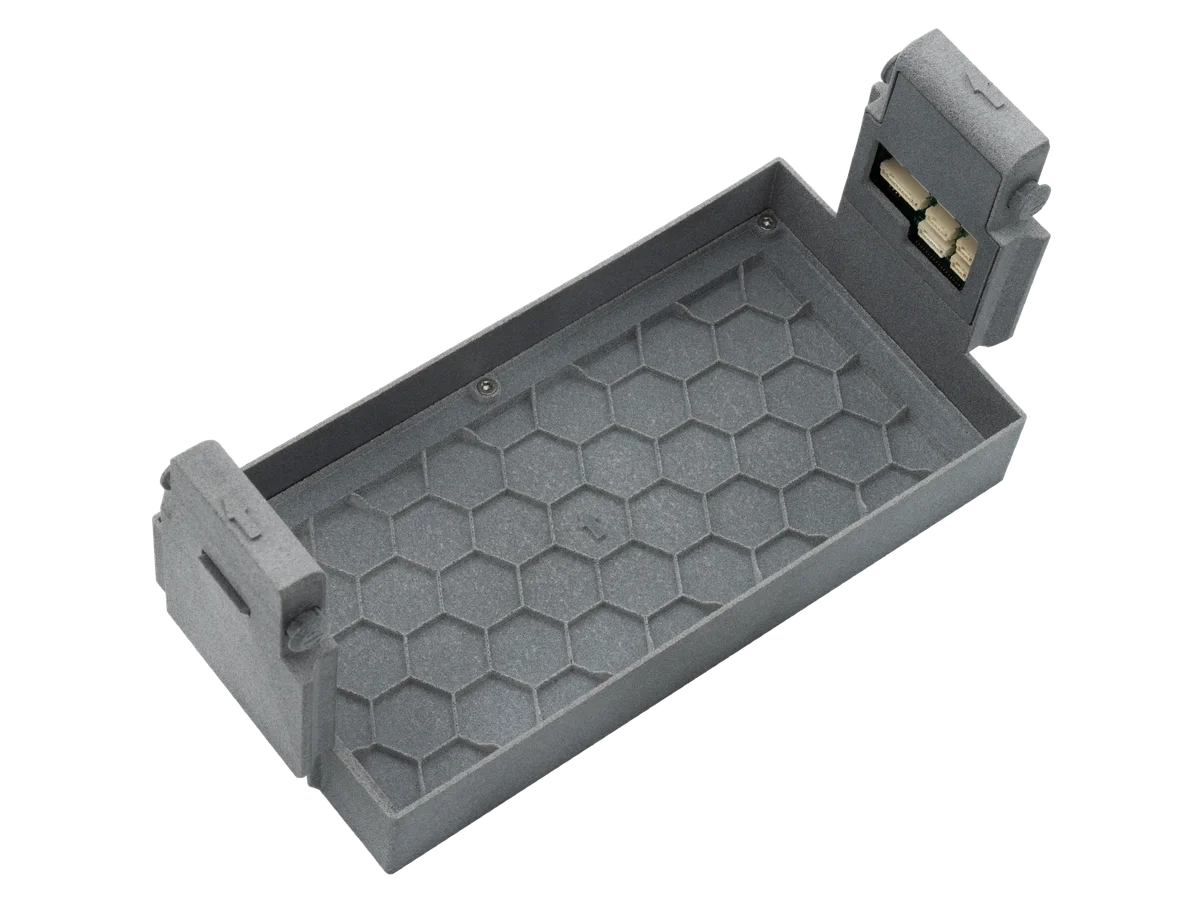

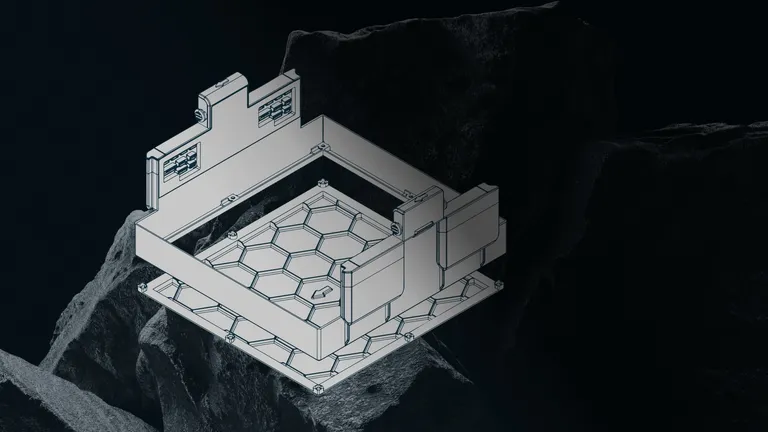

The Single Customization Payload Kit comes with a custom payload plate, along with CAD designs to serve as a starting point for drone customizations. It includes an EPROM chip, along with PCB, I2C USB, CANBUS, SBUS, PWM, telemetry over serial, and ethernet, along with 5V and 16V connections to easily integrate any drone customizations supporting an open standard.

Item 1 of 2
Item 1 of 2

Payload specifications

Plate weight

22 grams

Empty dimensions

225.6 x 103 x 107.5 mm

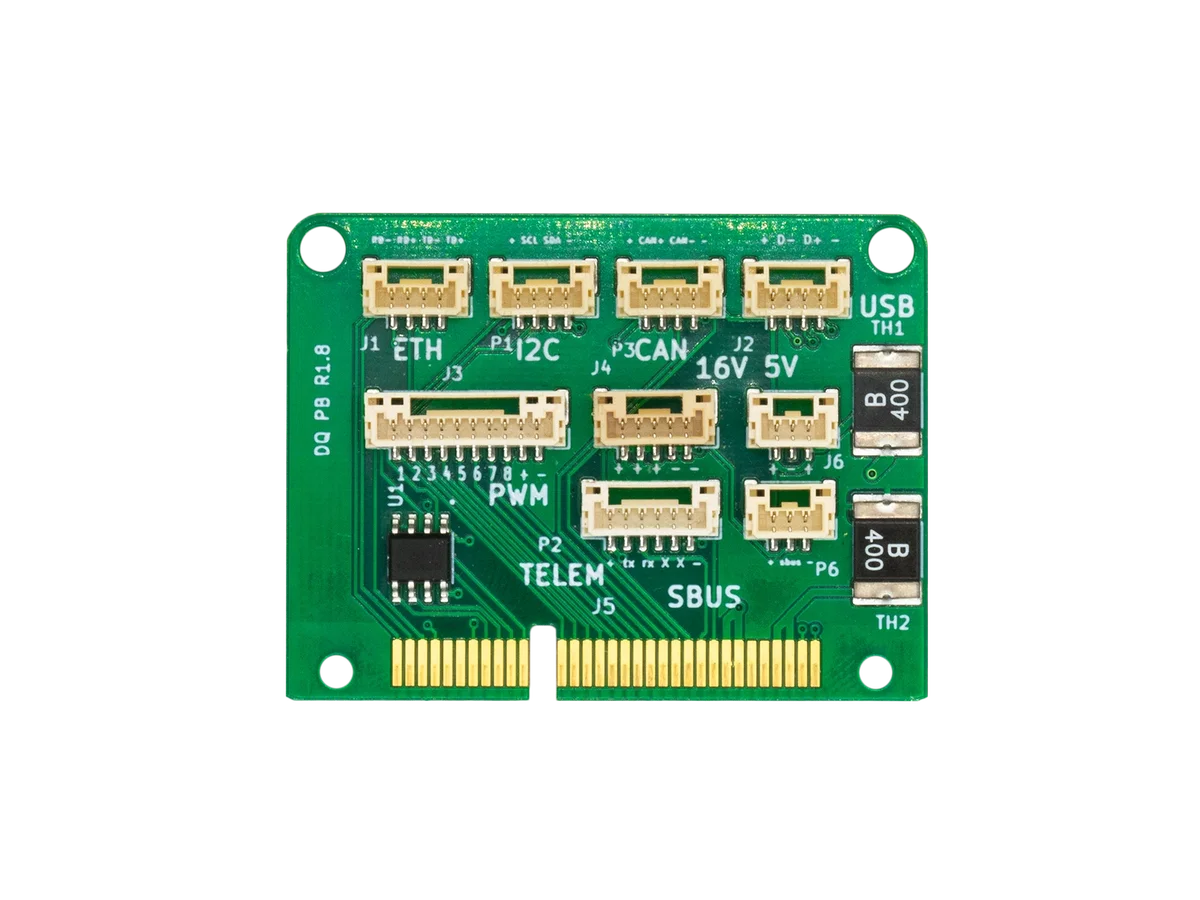

Payload board interfaces

1x Ethl, 1x I2C, 1x CANBUS, 1x USB , 8x PWM 1x 16v, 1x 5.3V 1x UART 1x SBUS

Number of I/O boards

1

Maximum power

5V / 16V at 2A

Connectors

JST GH plugs

<- go back

Other drone customization payload

Dual Custom Payload Integration Kit
Dual Custom Payload Integration Kit

Let's talk about your project

Connect with a DeltaQuad Solutions Specialist to find the ideal drone customization payload(s) to get the most out of your vehicle.
