Dual Customization Payload Integration Kit
Dual Customisation Payload Integration Kit
Dual-slot integration kit for flexible custom sensor and equipment integration.
:format(webp):no_upscale())
- 2.5 kgMaximum payload capacity
- 5V / 16Vat 2A
- MAVLinkOpen standard
Double the drone customization flexibility

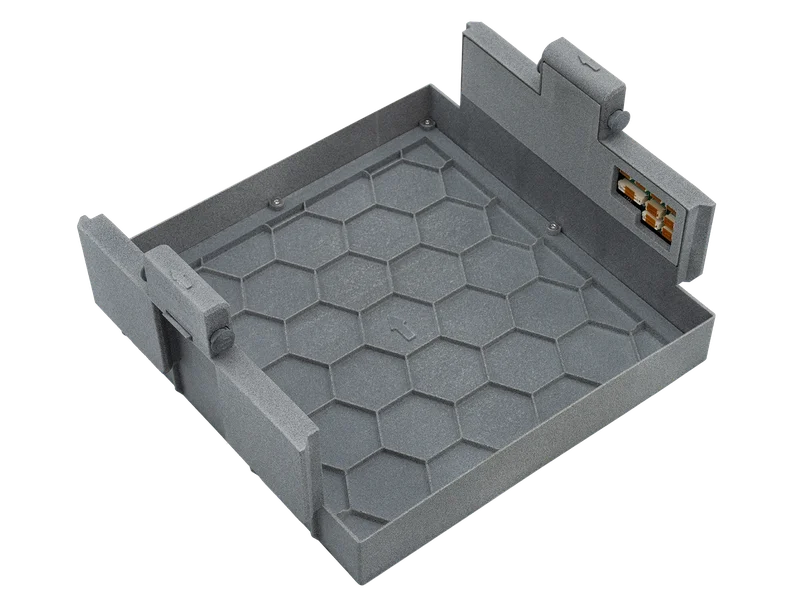

The double customisation integration kit has two empty payloads with a replaceable bottom plate for added payload flexibility. Additionally, CAD designs are provided to serve as a starting point for your drone customisations.
This kit includes I2C USB, CANBUS, SBUS, PWM, telemetry over serial, and Ethernet, along with 5V and 16V connections to easily integrate any payloads supporting an open standard.
:format(webp):no_upscale())
:format(webp):no_upscale())
Item 1 of 2
Payload specifications
Plate weight
32 grams
Empty dimensions
225.6 x 103 x 107.5 mm
Payload board interfaces
1x Ethl, 1x I2C, 1x CANBUS, 1x USB , 8x PWM 1x 16v, 1x 5.3V 1x UART 1x SBUS
Number of I/O boards
1 or 2
Maximum power
5V / 16V at 2A / Per I/O board
Connectors
JST GHR plugs
