Single Customization Payload Integration Kit
Single Customisation Payload Integration Kit
Modular integration kit for connecting custom sensors and equipment to DeltaQuad Evo.
:format(webp):no_upscale())
- 2 kgMaximum payload capacity
- 5V / 16VMaximum power (at 2A)
- MAVLinkOpen standard
Designed to fit seamlessly to your use case

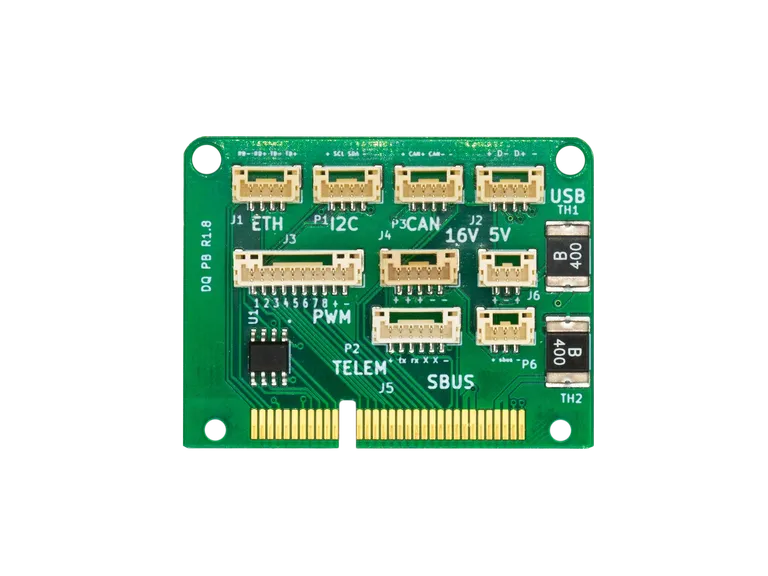

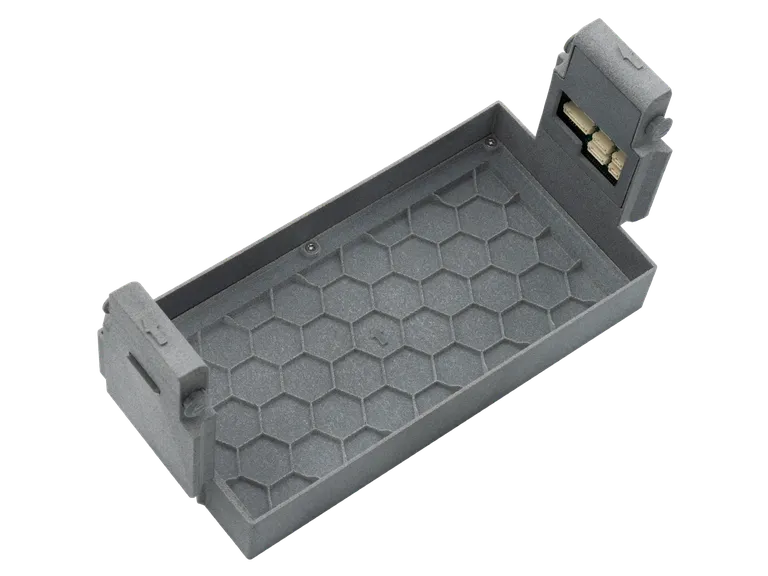

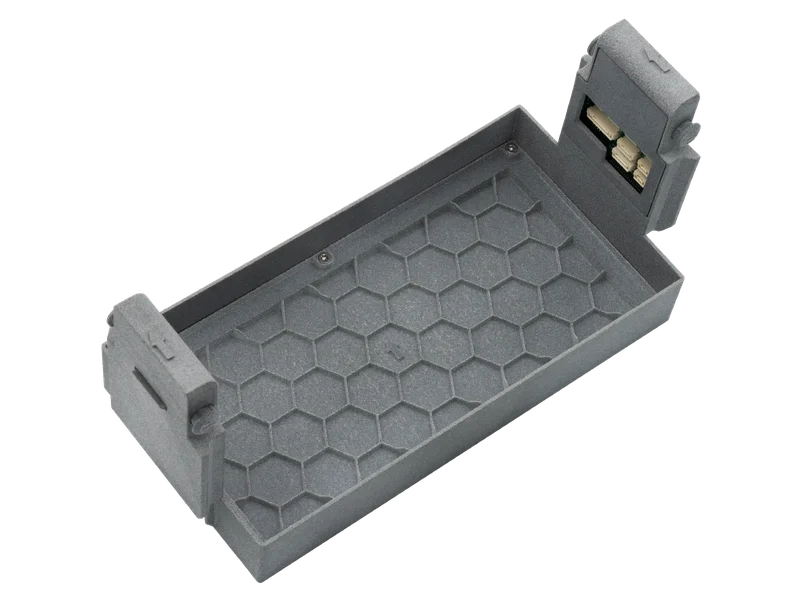

The Single Customisation Payload Kit includes a custom payload plate and CAD designs as a starting point for drone customisations. It includes an EPROM chip, along with a PCB, I2C USB, CANBUS, SBUS, PWM, telemetry over serial and Ethernet, along with 5V and 16V connections to easily integrate any drone customisations supporting an open standard.
:format(webp):no_upscale())
:format(webp):no_upscale())
Item 1 of 2
Payload specifications
Plate weight
22 grams
Empty dimensions
225.6 x 103 x 107.5 mm
Payload board interfaces
1x Ethl, 1x I2C, 1x CANBUS, 1x USB , 8x PWM 1x 16v, 1x 5.3V 1x UART 1x SBUS
Number of I/O boards
1
Maximum power
5V / 16V at 2A
Connectors
JST GH plugs
