Dual Customization Payload Integration Kit

evo-tactical-f9

2.5 kg

Maximum payload capacity

5V / 16V

at 2A

MAVLink

Open standard

Double the drone customization flexibility

The double customization integration kit has two empty payloads with a replaceable bottom plate for added payload flexibility. Additionally, CAD designs are provided to serve as a starting point for your drone customizations.

This kit includes I2C USB, CANBUS, SBUS, PWM, telemetry over serial, and ethernet, along with 5V and 16V connections to easily integrate any payloads supporting an open standard.

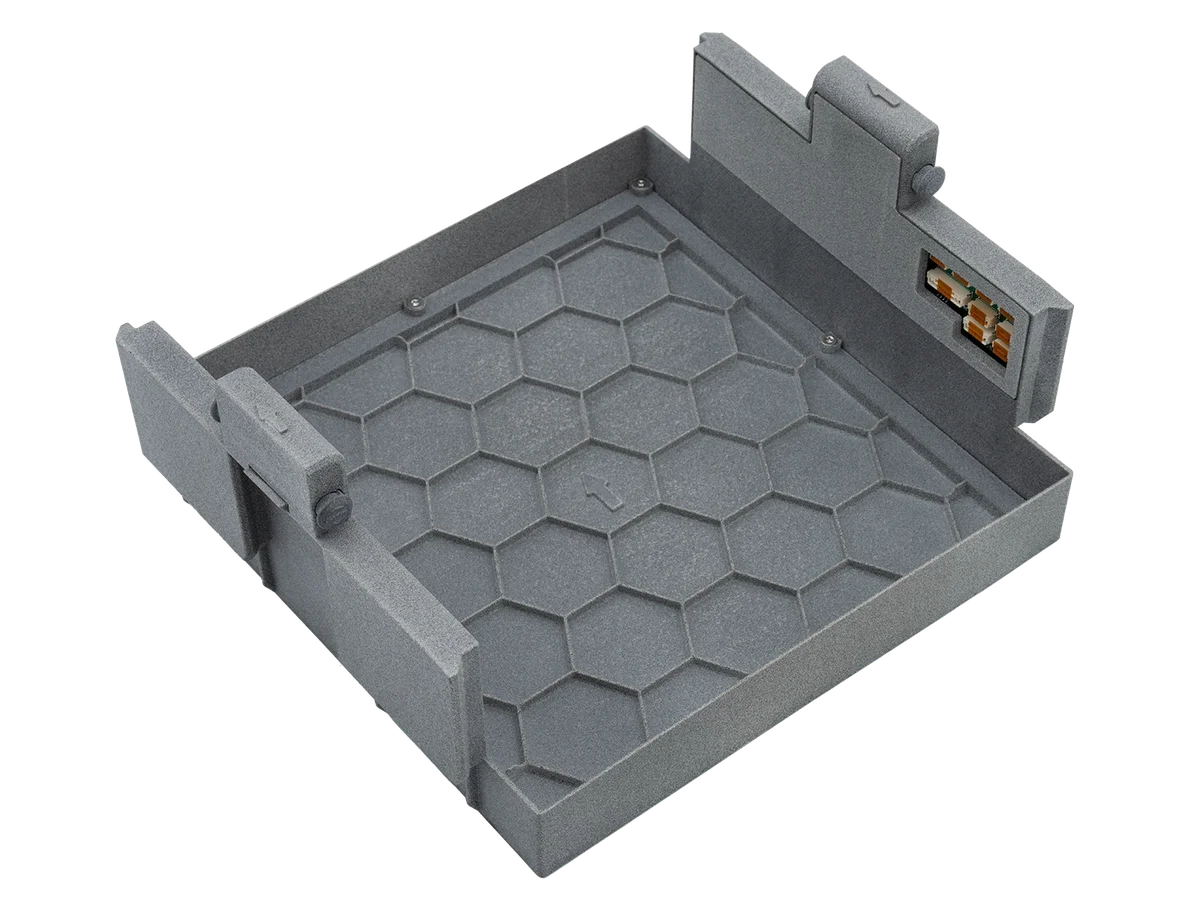

  1. Drone customization | DeltaQuad Evo | Side view of customization payload
Item 1 of 2
  1. Drone customization | DeltaQuad Evo | Side view of customization payload
  2. Drone customization | DeltaQuad Evo | Payload IO board
Item 1 of 2

Payload specifications

Plate weight

32 grams

Empty dimensions

225.6 x 103 x 107.5 mm

Payload board interfaces

1x Ethl, 1x I2C, 1x CANBUS, 1x USB , 8x PWM 1x 16v, 1x 5.3V 1x UART 1x SBUS

Number of I/O boards

1 or 2

Maximum power

5V / 16V at 2A / Per I/O board

Connectors

JST GHR plugs
