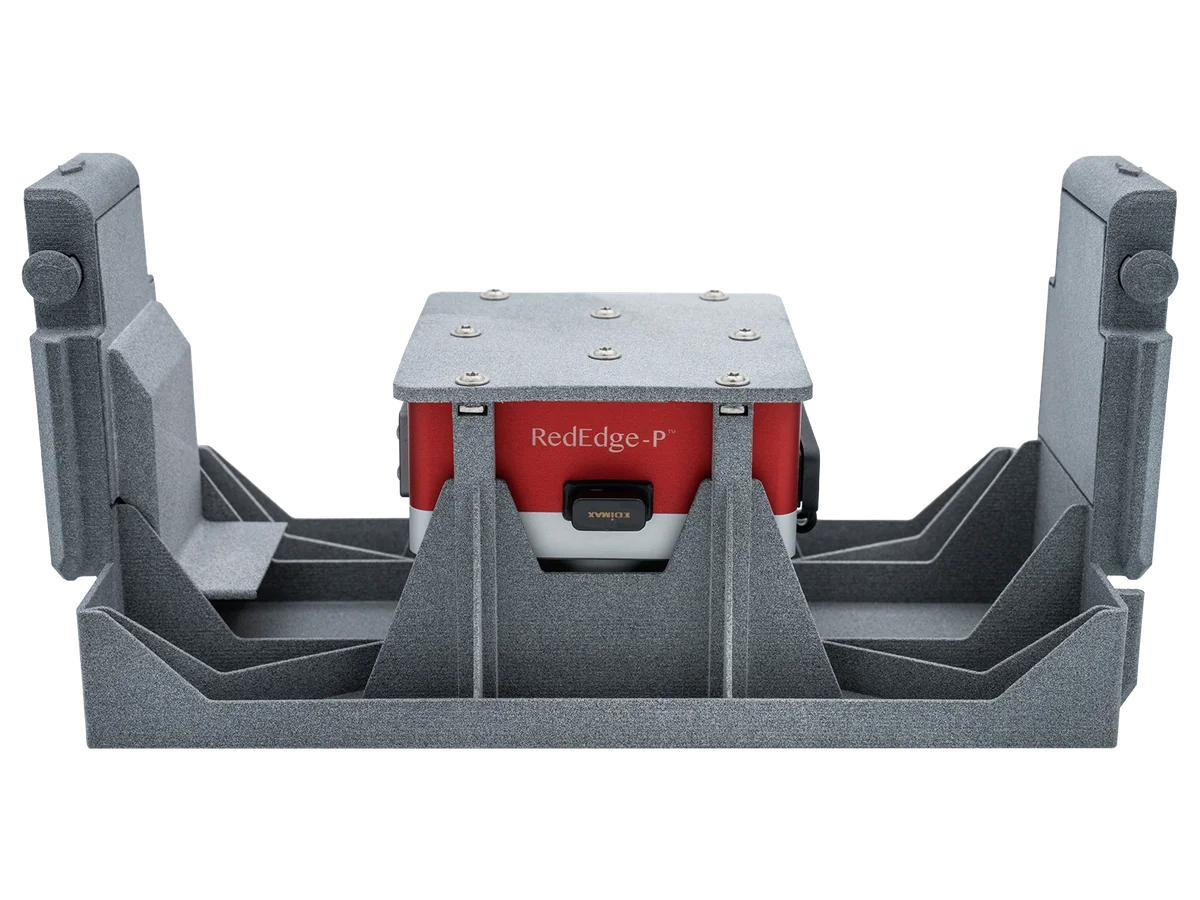

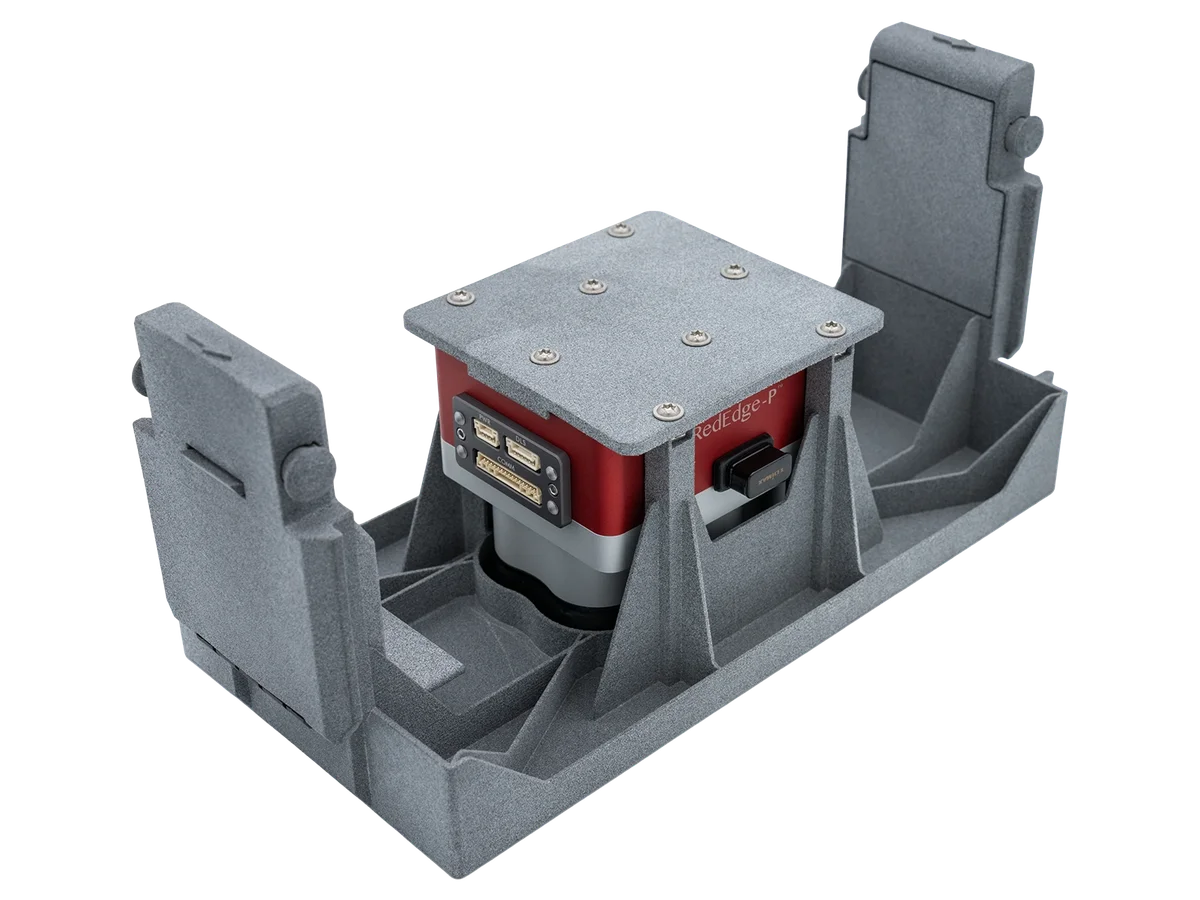

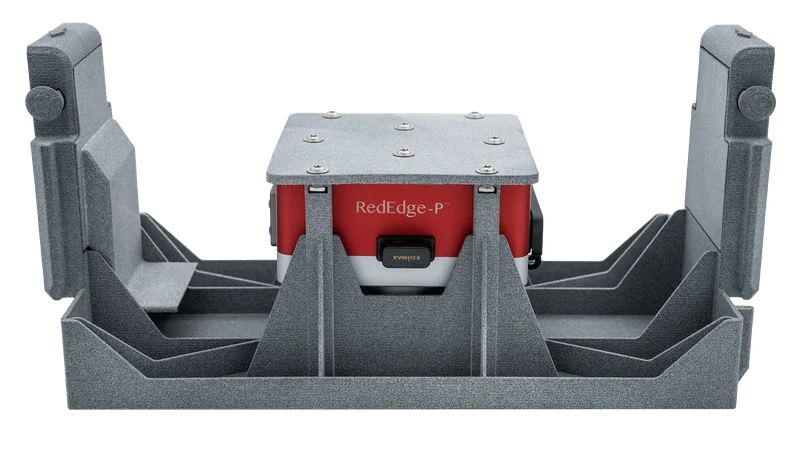

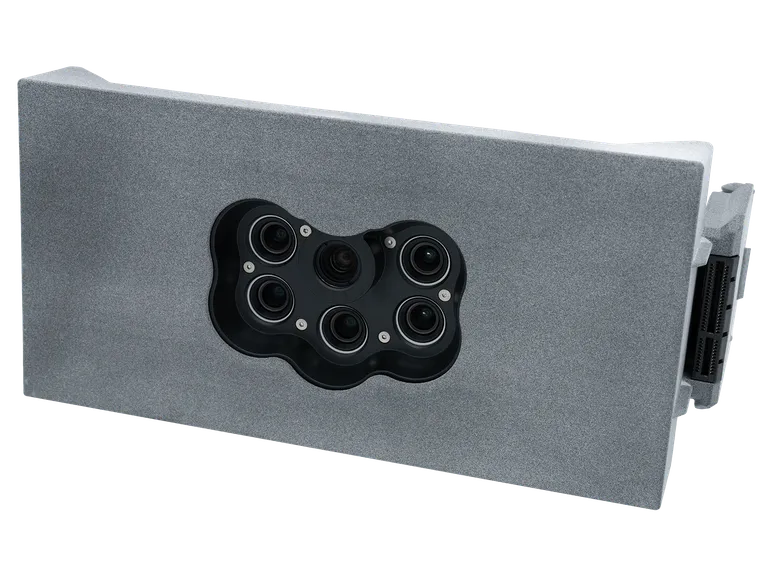

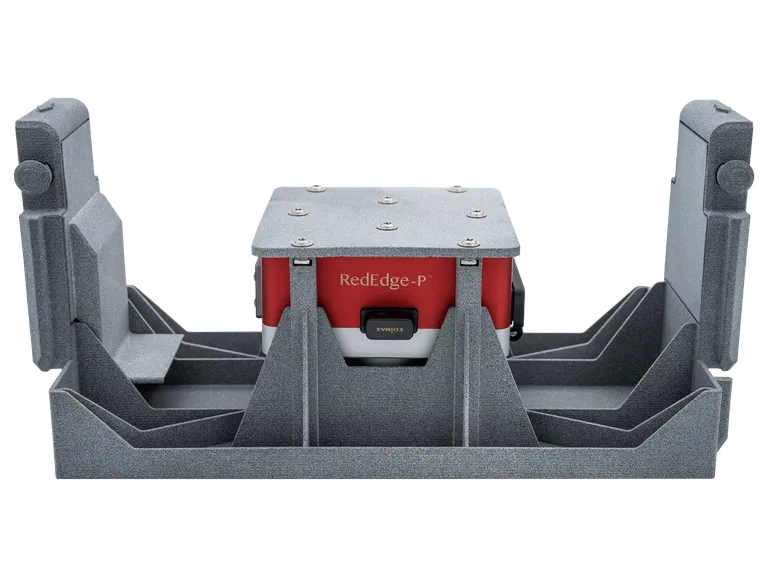

AgEagle RedEdge-P

5

Multispectral bands

1.6 MP

Resolution per band

5.1 MP

Panchromatic band

Entry-level multispectral sensor

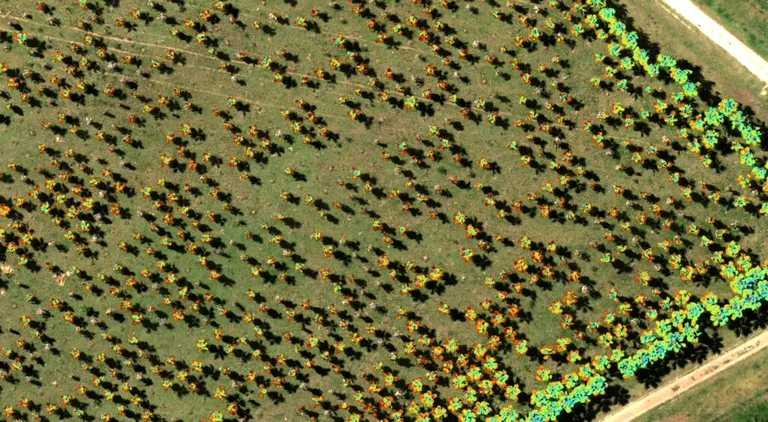

Ideal for maintaining consistent data quality and repeatability, AgEagle RedEdge-P uses purpose-built optics and industrial image sensors with narrowband, scientific-grade filters to create RGB and multispectral outputs.

Item 1 of 3
Item 1 of 3

Camera specifications

Model name

AgEagle MicaSense RedEdge P

Weight

350 g (12.34 oz.) (includes DLS 2 and cables)

Dimensions

8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in)

Sensor resolution

1456 x 1088 (1.6MP per MS band) 2464 x 2056 (5.1MP panchromatic band)

External power

7.0 V - 25.2 V

Spectral bands

Blue, green, red, red edge, near-IR (global shutter, narrowband)

Wavelength (nm)

Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27 nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)

RGB color output

5.1 MP (global shutter, aligned with all bands) *with appropriate post-processing

Ground Sample Distance (GSD)

7.7 cm per pixel (per MS band), 3.98 cm per pixel (Panchro), at 120 m (~400 ft) AGL

Capture rate

Up to three captures per second raw DNG

Interfaces

3 GPIO: Trigger input, top of frame out, 1 PPS out, host button. USB 2.0 port for WiFi, serial, 10/100/1000 ethernet, and CF Express Storage

Field of view

50° HFOV x 38° VFOV (MS) 44° HFOV x 38° VFOV (PAN)

Storage

CFexpress Card

IP rating

IP4x
