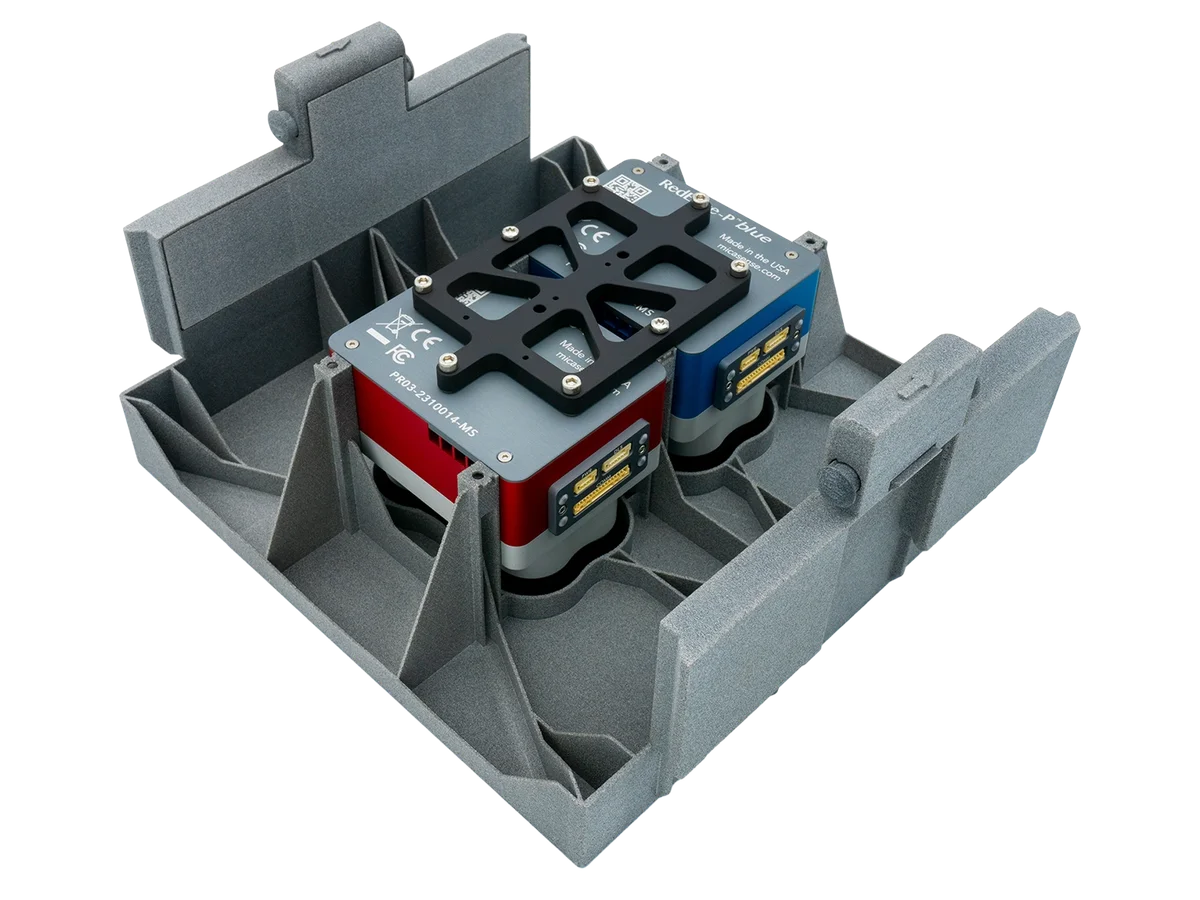

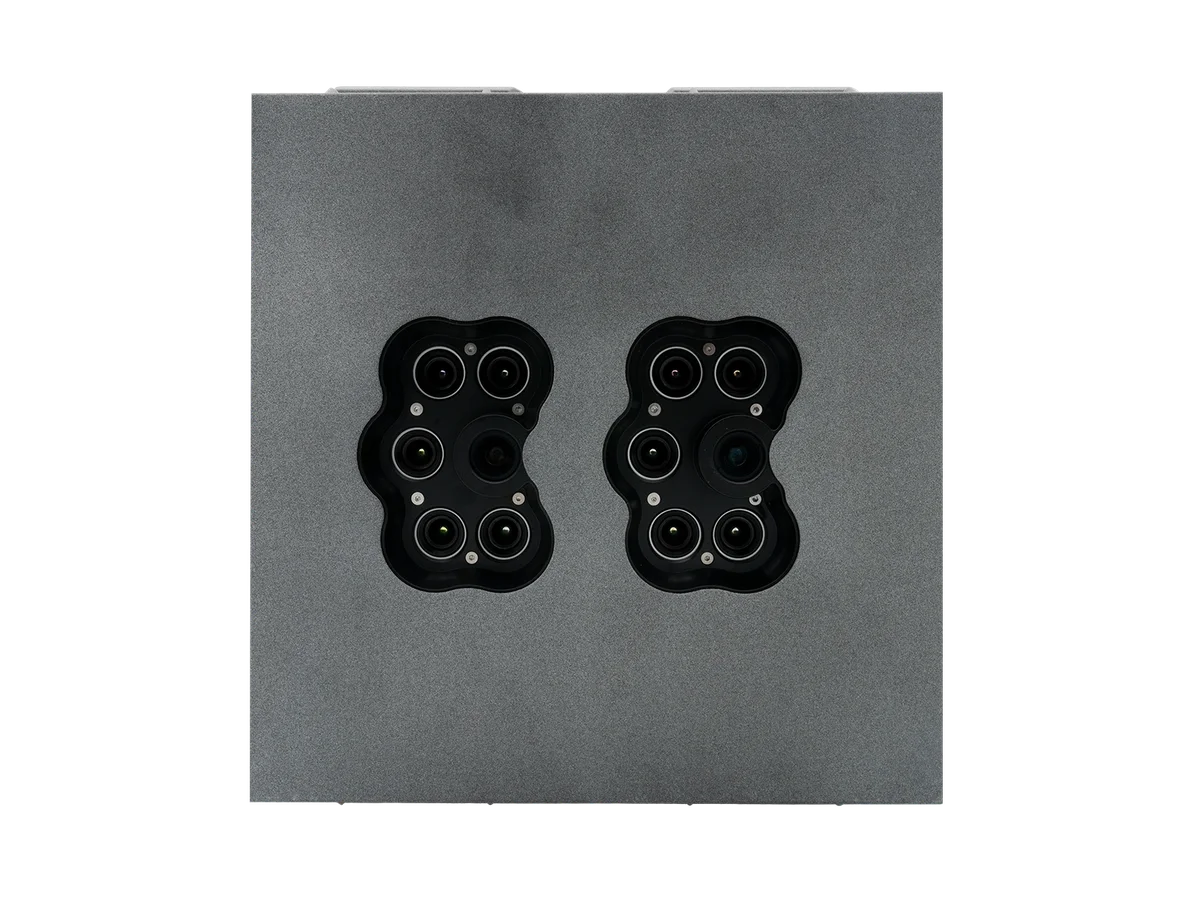

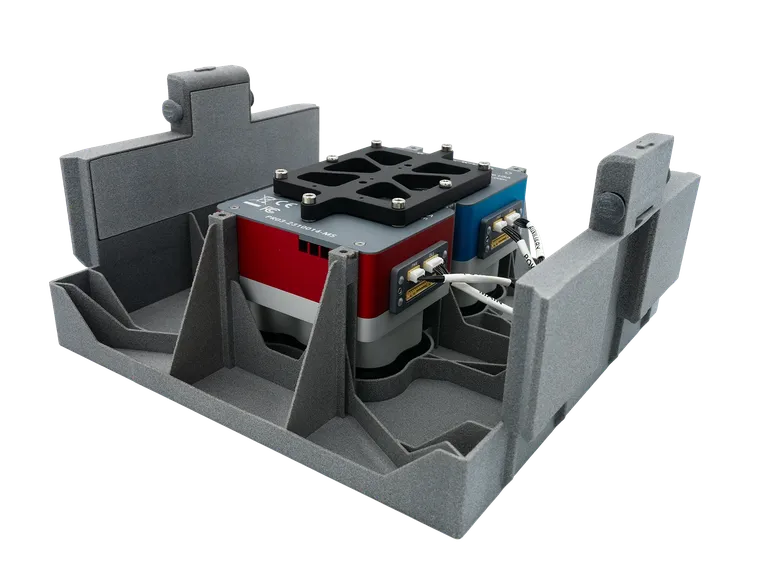

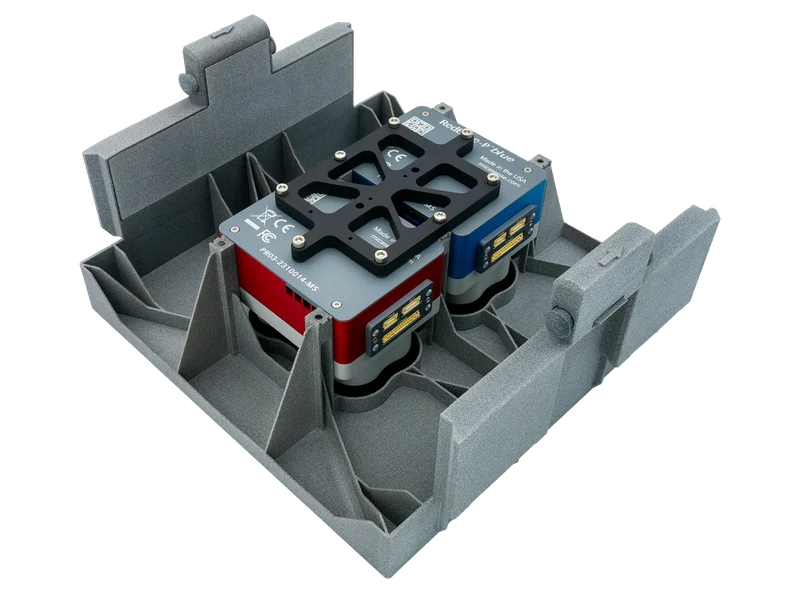

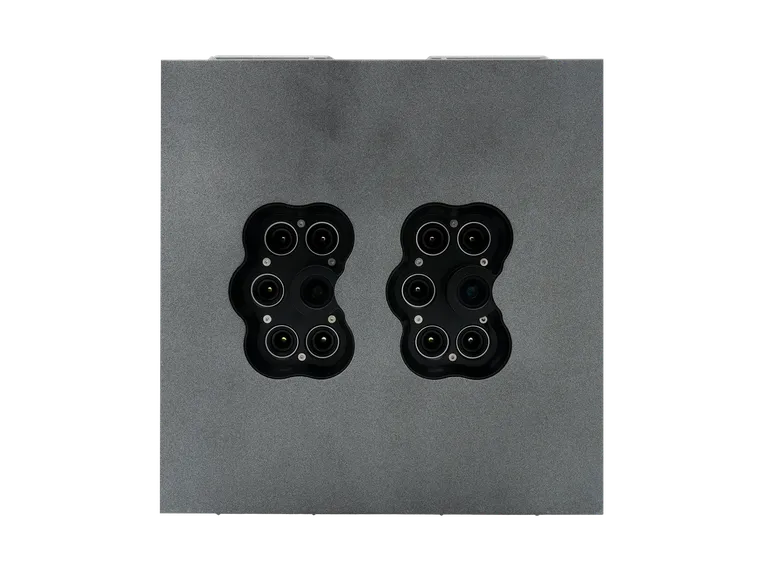

AgEagle RedEdge-P Dual

10

Multispectral bands

1.6 MP

Resolution per band

5.1 MP

Panchromatic band

Multispectral sensor exclusive to DeltaQuad Evo

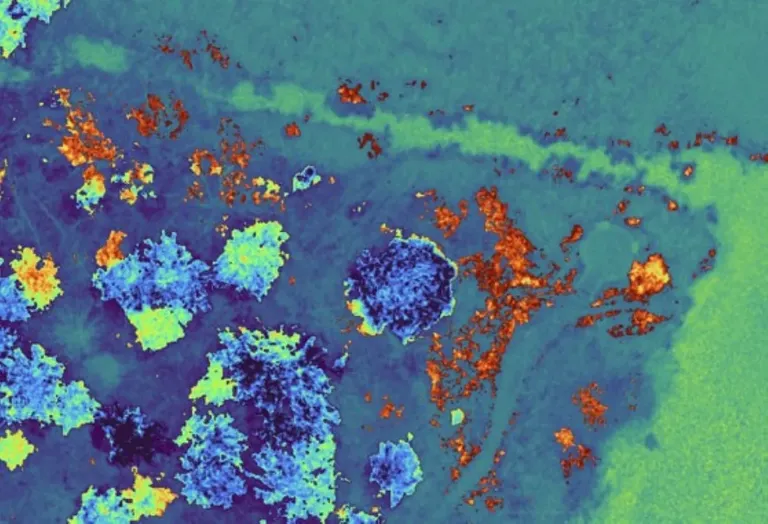

For plant classification and identification, environmental research and conservation, and vegetation analysis of coastal water bodies, RedEdge-P Dual is the ideal multispectral sensor with drone surveying equipment. Offering 10 spectral bands, it replaces Landsat 8 and Sentinel-2 satellite outputs at an enhanced spatial resolution.


Item 1 of 3
Item 1 of 3

Camera specifications

Model name

AgEagle RedEdge-P Dual

Weight

745 grams (26.2 oz)

Dimensions

13.2 cm x 8.8 cm x 9.67 cm

Spectral bands

Coastal Blue 444(28)* / Blue (32) / Green 531(14)* / Green 560(27) / Red 650(16)* / Red 668(14) / Red Edge 705(10)* / Red Edge 717(12) / Near-IR 740(18)* / Near-IR 842(57)

RGB output

5.1 MP (global shutter, aligned with all bands)

Sensor resolution

1456 x 1088 (1.6 MP per multispectral band) 2464x 2056 (5.1 MP panchromatic band)

Multispec GSD @120 m (per multispec band)

7.7 cm per pixel

Panchrom & Pansharpened GSD @120 m

3.98 cm per pixel

External power

7.0 V - 25.2 V

Power input

11/14.0/20W (standby, average, peak)

Capture rate

Up to 3 images per second raw DNG

FoV

50° HFOV x 38° VFOV (MS) 44° HFOV x 38° VFOV (PAN)

Heat

Ambient without airflow: 0-40 °C / 0-104 °F Ambient with airflow >0.5 meter per second / >1.1 mph: 0-50 °C / 0-122 °F

Storage

CFExpress card

IP rating

IP4X
