Agrowing ILX-LR1

10x12 MP

Multispectral bands

61 MP

RGB mapping

700 m

Max altitude

15x

More resolution than competitors

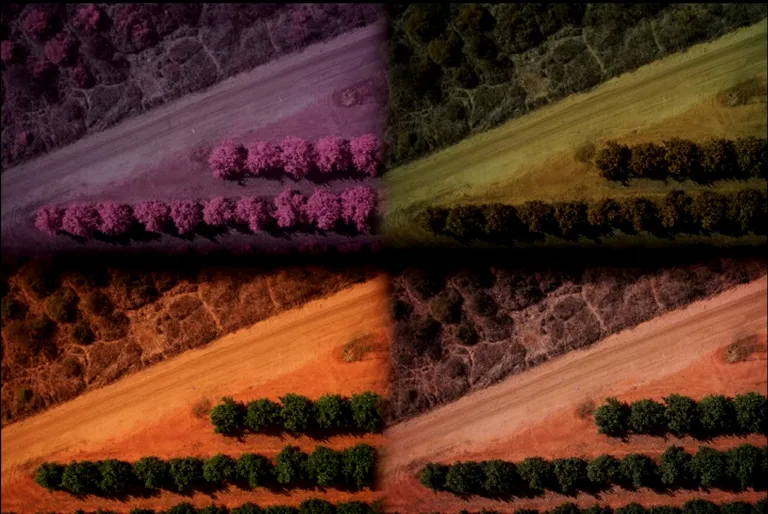

Suitable for detailed multispectral mapping

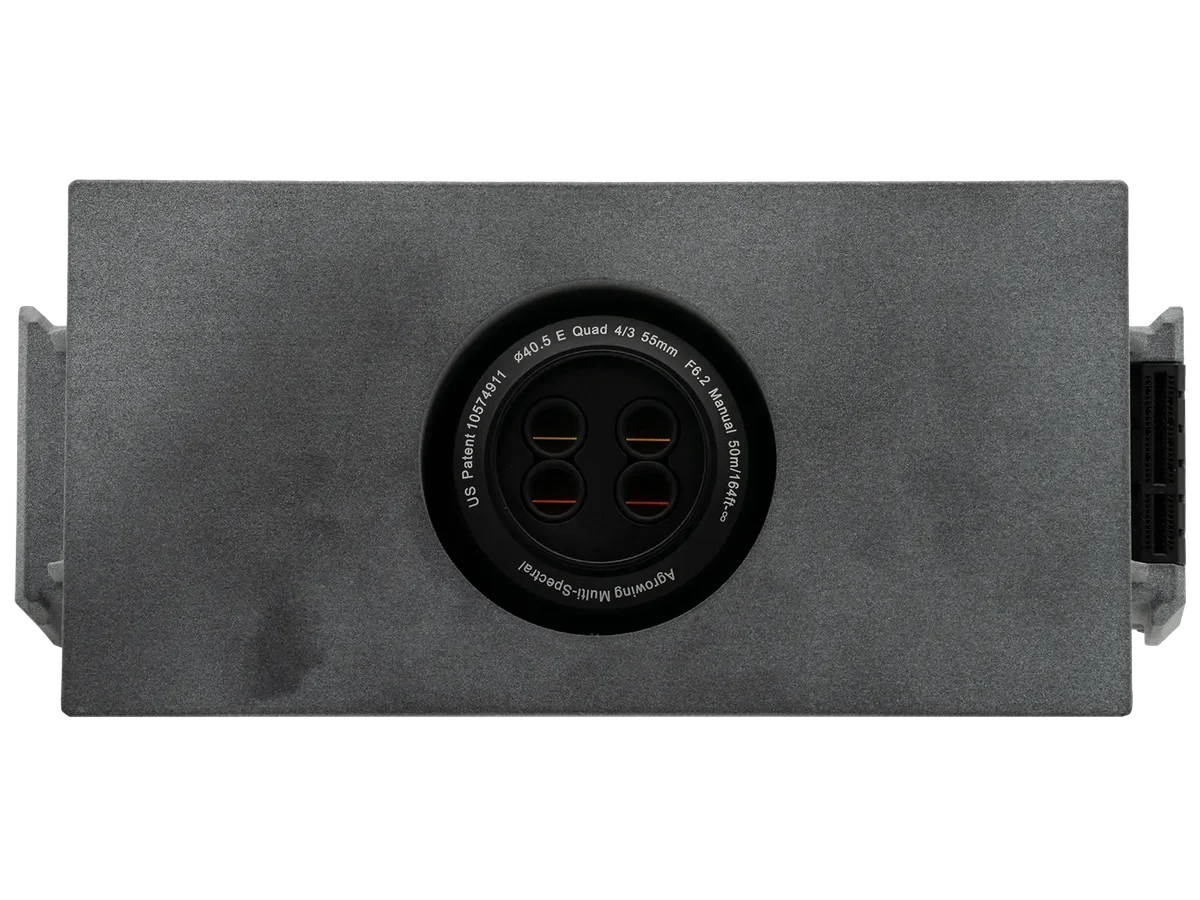

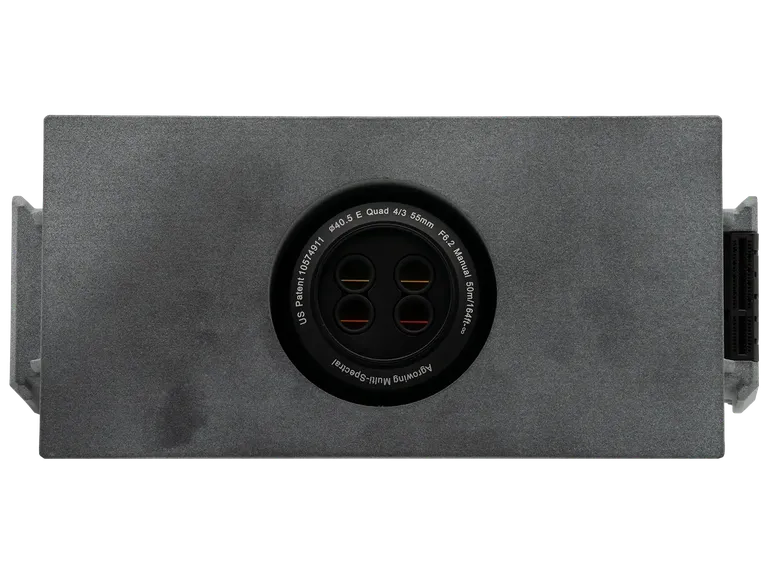

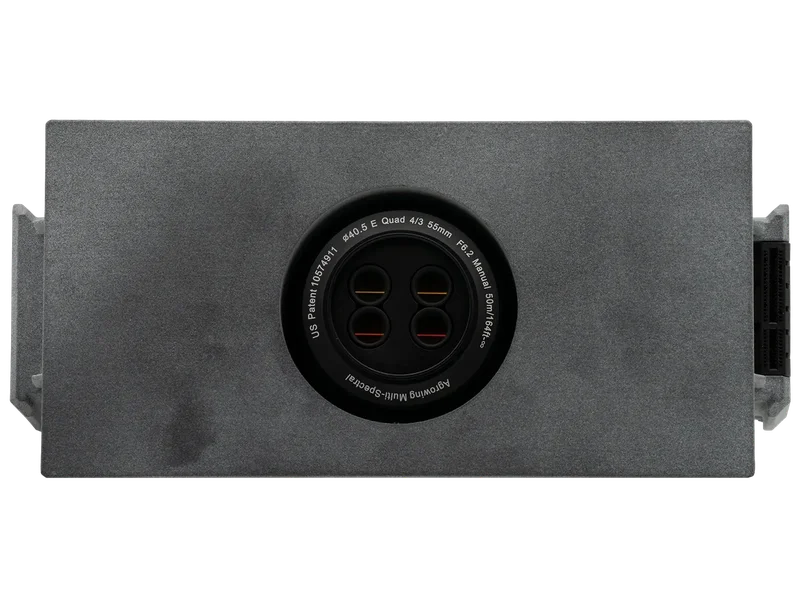

Based on industry-leading Sony cameras, Agrowing ILX-LR1 heightens multispectral and RGB mapping capabilities. This lightweight frame comes with a high-resolution sensor, equipped with Agrowing QUAD, SEXTUPLE, and specialized multispectral lenses for sharp 10/12MP imagery, and a regular 61MP lens for detailed RGB mapping. It is ideal for agriculture and defense applications.

Item 1 of 3
Item 1 of 3

Camera specifications

Model name

Agrowing ILX-LR1

Weight

424 g (including lens)

Dimensions

64.6 x 31.5 mm

Type

Quad lens single mount

Multispectral Chroma bands

30 nm wide 405; 430; 450; 550; 560; 570; 650; 685; 710; 850

Bands

10 band multispectral of 12MP per band or 9 bands + wide RGB

Effective focal length

25 mm

Focus type and range

Manual 0.5 m - infinity

Field of View (FoV)

Diagonal 46.0 Horizontal 40.7 Vertical 27.60

Relative illumination

68%

F-stop

6.0
