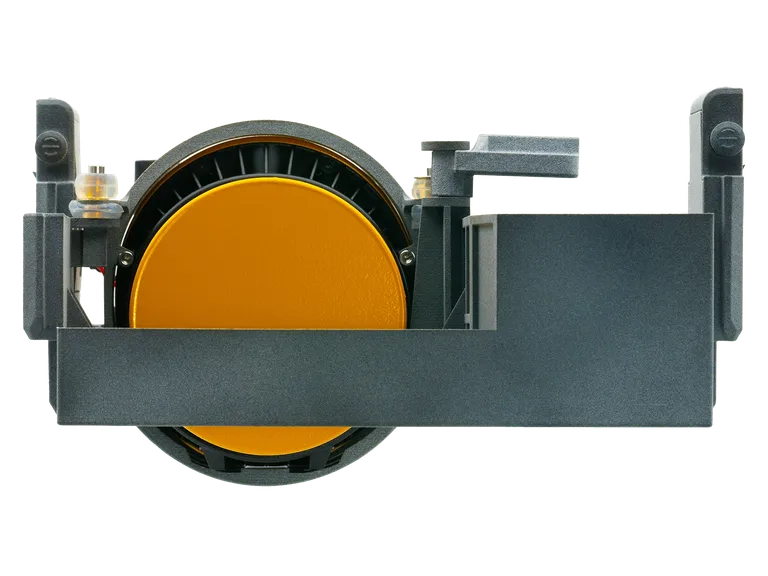

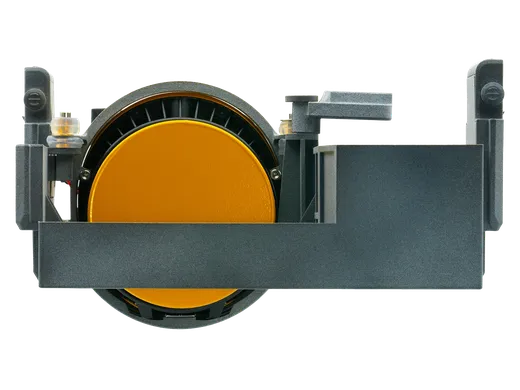

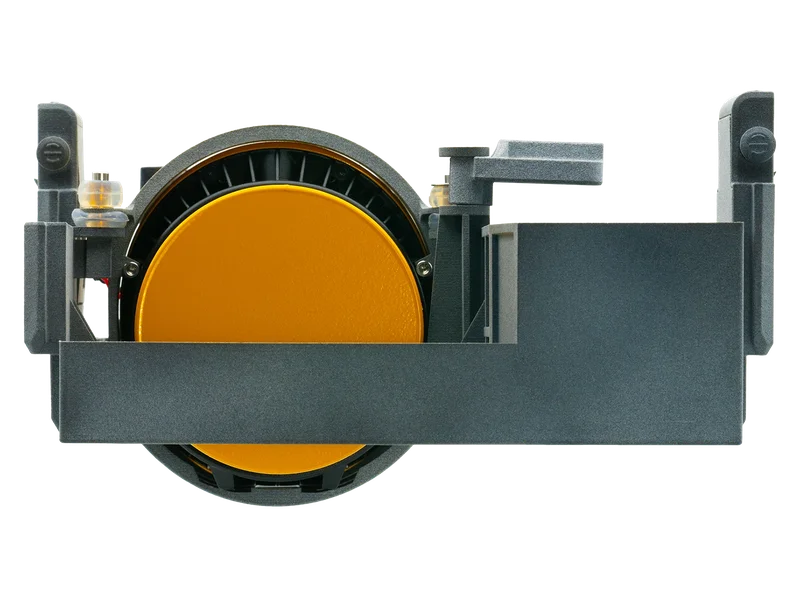

YellowScan Surveyor Ultra

3 cm x 2.5 cm

Precision x Accuracy

1200 ha

Maximum coverage

8MP RGB

Embedded camera

Ideal for 360° LiDAR and RGB drone mapping

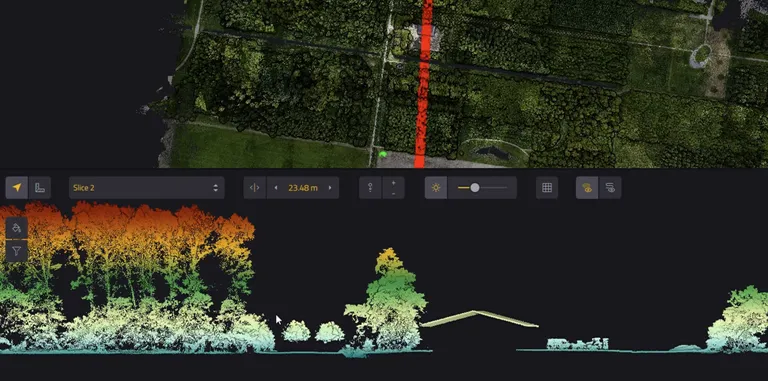

YellowScan Surveyor Ultra OEM sets a new standard in LiDAR and RGB drone mapping for vegetation penetration. Easily integrated with Evo, this payload offers the flexibility to run with an additional battery for extended LiDAR survey missions. It boosts flight performance, and ensures more coverage and superior-quality data collection, tailored for diverse mapping needs.

It comes with an embedded 8MP global shutter RGB camera to colorize the point cloud in the same flight, making a strong candidate for the only LiDAR and RGB drone payload a mapper will need.

Camera specifications

Model name

Surveyor Ultra

Laser scanner

Hesai XT32M2X

Laser wavelength

905 nm

Laser range

Up to 300 m

Precision

3 cm

Accuracy

2.5 cm

Typical flight speed

10 m/s

Max. AGL altitude

100 m

Point density

60 pts/sqm @ 100m AGL 10 m/s

Scanner field-of-view

360° x 40.3°

Shots per second

Single return: 640 000 points/sec, Dual return: 1280000 points/sec, Triple return: 1920000 points/sec

Scanning frequency

Up to 20 Hz

Echoes per shot

Up to 3

Autonomy

1.2 hours typically

Operating temperature

-10 to +40 °C

Weight

0.98 kg (2.2 lbs) battery excluded

Size

L 153 x W 113 x H 117 mm

Power consumption

20 W

<- go back

Other LiDAR and RGB drone mapping cameras

MultispectralThermal

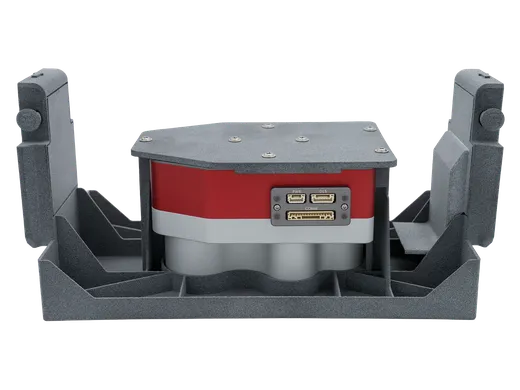

AgEagle Altum-PT
Advanced multispectral and thermal drone payload for agricultural insight
  • 5 Multispectral bands
  • 3.2 MPResolution per band
  • 12.4 MPPanchromatic band
AgEagle Altum-PT
MultispectralRGB

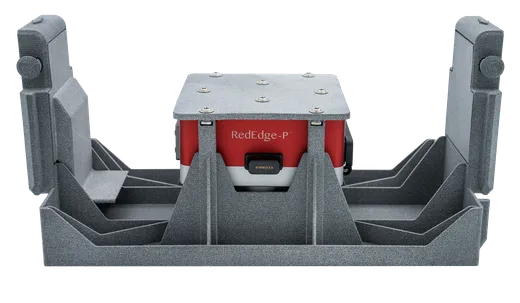

AgEagle RedEdge-P
Multispectral and RGB drone payload for mapping
  • 5 Multispectral bands
  • 1.6 MPResolution per band
  • 5.1 MPPanchromatic band
AgEagle RedEdge-P
Multispectral

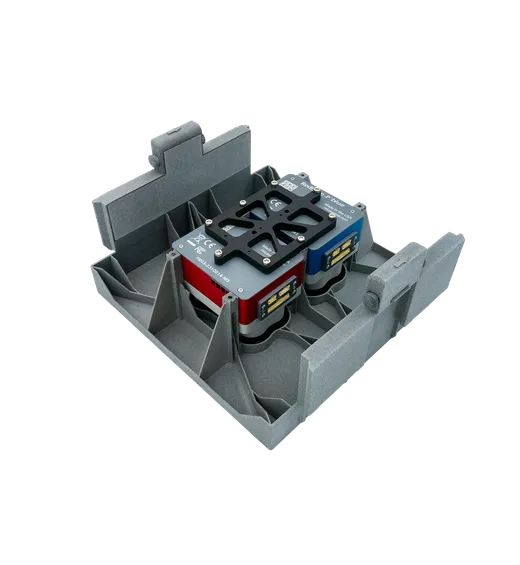

AgEagle RedEdge-P Dual
Multispectral drone payload for mapping
  • 10Multispectral bands
  • 1.6 MPResolution per band
  • 5.1 MPPanchromatic band
AgEagle RedEdge-P Dual
RGBMultispectral

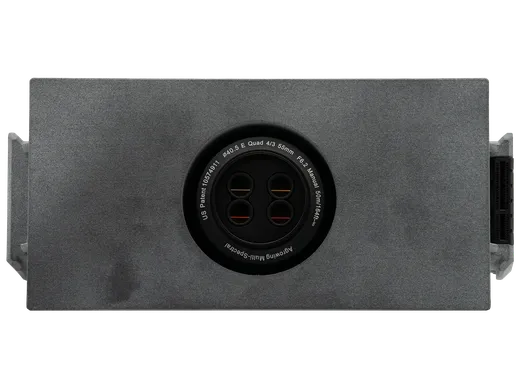

Agrowing ILX-LR1
Drone payload for heightening multispectral and RGB mapping capabilities
  • 10x12 MPMultispectral bands
  • 61 MPRGB mapping
  • 700 mMax altitude
Agrowing ILX-LR1
RGB

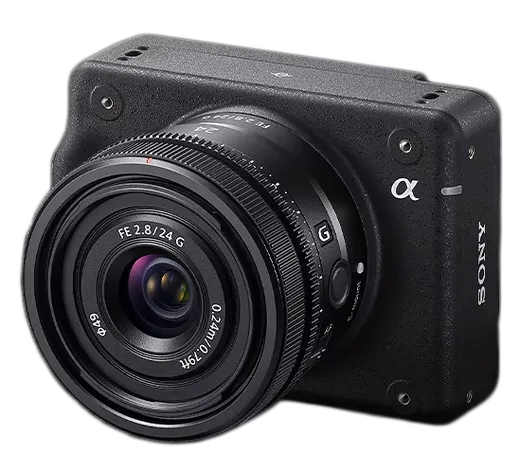

Sony ILX-LR1
The latest in RGB mapping
  • 1200 haCoverage at 1cm/px GSD
  • 3300 haCoverage at 3cm/px GSD
  • 61 MPRGB mapping
Sony ILX-LR1
RGB

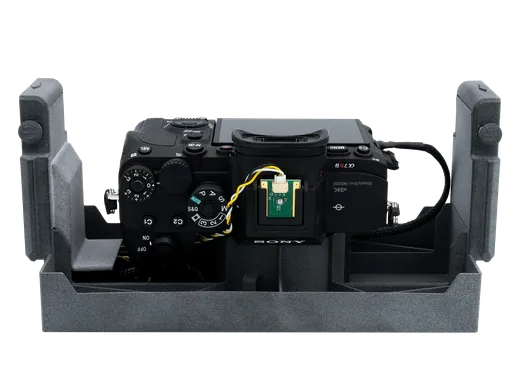

Sony α7R IV
