AgEagle Altum-PT

5

Multispectral bands

3.2 MP

Resolution per band

12.4 MP

Panchromatic band

Ideal drone surveying equipment for advanced agricultural insight

AgEagle MicaSense Altum-PT marks a significant leap in remote sensing and agricultural research, merging high-resolution imaging, thermal sensing, and spectral analysis. It comes with a separate GPS-enabled lid with light sensors to compensate for inconsistent and changing light.

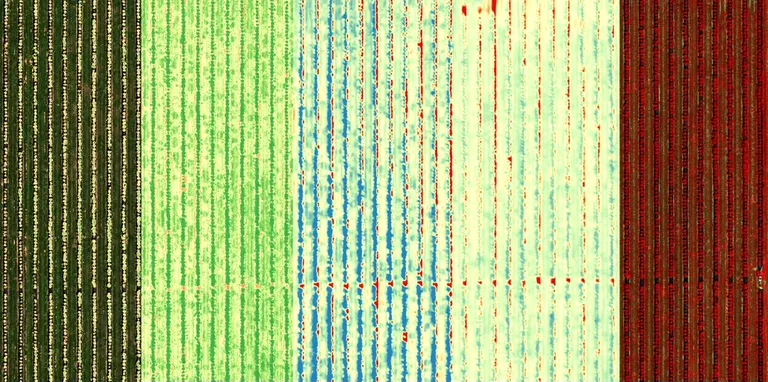

This sensor provides insight into crop health and environmental conditions, offering distortion-free results and quick data capture with RGB and multispectral outputs.

Item 1 of 3
Item 1 of 3

Camera specifications

Model name

AgEagle MicaSense Altum-PT

Weight

Altum-PT + DLS2: 577 g (20.35 oz.)

Dimensions

11.0 x 8.0 x 6.9 cm (4.3 in x 3.1 in x 2.7 in)

External power

7.0 - 25.2 V

Power input

5.5/7.0/10W (standby, average, peak)

Spectral bands

Blue, green, red, red edge, near infrared (NIR)

Wavelength (nm)

Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27 nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)

RGB color output

12.4 MP (global shutter, aligned with all bands)

Thermal

FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated

Sensor resolution

2064 x 1544 (3.2 MP per MS band), 4112 x 3008 (12MP per PAN band), 320 × 256 thermal infrared

Ground Sample Distance (GSD)

5.28 cm per pixel (per MS band) at 120 m (~400 ft) AGL 33.5 cm per pixel (thermal) at 120 m

Capture rate

2 capture per second (all bands), 12-bit RAW

Interfaces

3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CFexpress for storage

Field of view

50° HFOV x 38° VFOV (multispectral) 46° HFOV x 35° VFOV (panchromatic) 48º x 39º (thermal)

Storage

CFexpress Card
