x10 zoom
Digital visual camera
640×512 px
Thermal resolution
-40°C to +550°C
Temperature range

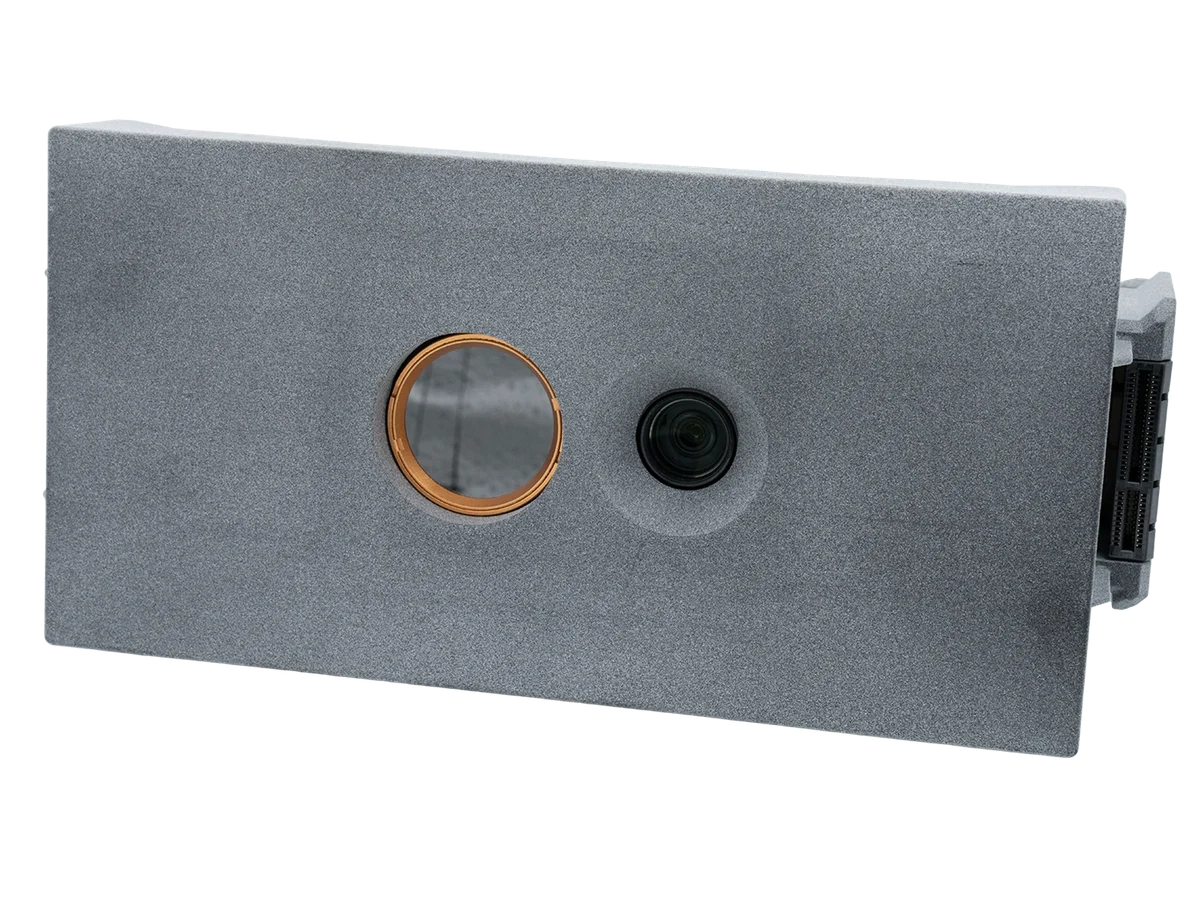

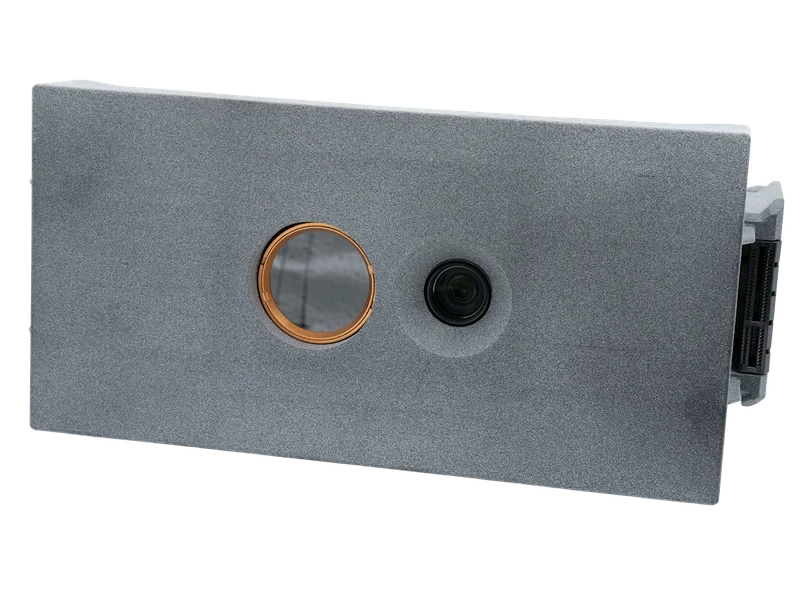

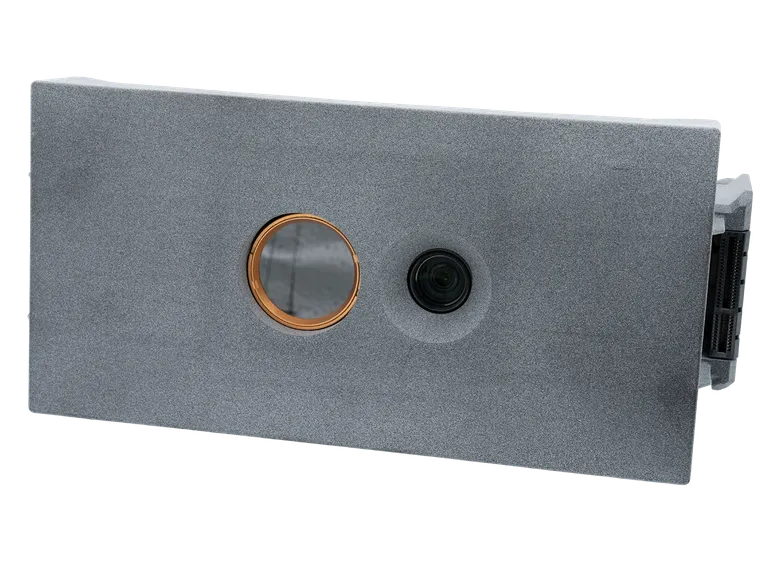

Thermal and RGB camera with swappable lenses

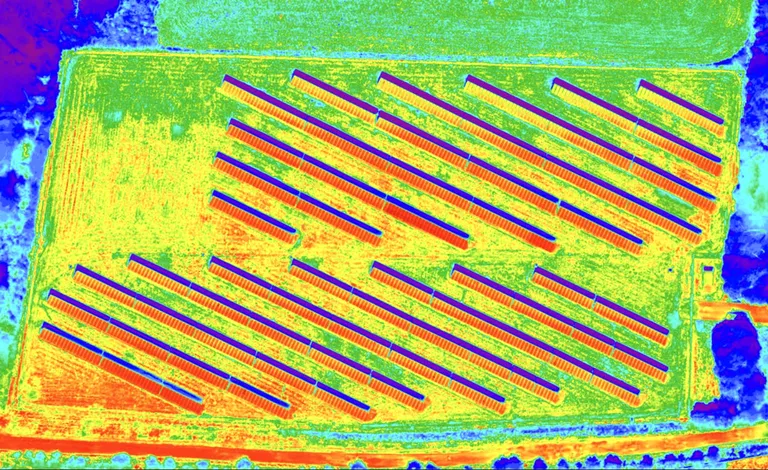

WorksWell WIRIS Pro unlocks the potential of fully radiometric thermal imaging in drone surveying equipment, built specifically for pairing with UAVs as a drone surveying equipment. Vital for advanced analysis such a temperature measurement, radiometry, and advanced reporting, its full HD RGB camera precisely captures easy-to-miss details. From broad temperature range to instant data analysis, this payload uses advanced thermal data to give users more insight.
Item 1 of 3
Item 1 of 3
Camera specifications
Model name
WorksWell WIRIS Pro
IR camera resolution
640 x 512 pixels
IR super resolution mode
1266 x 1010 pixels (improvement of native resolution up to 1.3 Mpx)
Storage
CFexpress Card
FPA active sensor size
1.088 x 0.8705 cm
Temperature ranges
-25 °C to +150 °C (-13 °F to 302 °F) -40 °C °C to +550 °C (-40 °F to 1022 °F) optional temperature range +50 – 1000 °C (122 °F to 1832 °F) optional temperature range +400 – 1500 °C (752 °F to 2732 °F)
Temperature sensitivity
Standard 0.05 °C (50 mK) or optional 0.03 °C (30 mK)
Accuracy
±2 % or ±2 °C (in temperature range -10 °C to +150°C and 0 °C to +550°C, after stabilization, climate chamber and black body testing for all products)
Frame rate
30 Hz or 9 Hz
Spectral range/detector
7.5 – 13.5 μm / Uncooled VOx microbolometer
Calibration of each lens
Package includes a calibration certificate
Available lenses
18°, 32°, 45°, 69° (exchangeable lenses, all calibrated), visit FOV calculator
Protective filter on lens
Filter protects the lens against external damage during the flight
IR digital zoom
1 – 14x continuous
Focus
Autofocus with Direct Focus Zoom synchronization
Operating temperature range
-15 °C to +50 °C (5 °F to 122 °F)
Storage temperature range
-30 °C to +60 °C (-22 °F to 140 °F)
Housing material
Durable aluminium body for long-time measurement stability
Digital visual camera resolution
1920 x 1080 pixels (Full HD), 1/3” sensor, Auto white balance, Wide dynamic range, Backlight compensation, Exposure and Gamma control
Digital visual camera optical zoom
Optical zoom
Digital visual camera optical zoom
10x optical zoom with vibration compensation
Digital visual camera view angle
ultra zoom 6.9° - extra wide 58.2°, focal 33.0 mm - 3.3 mm
Digital visual camera noise reduction
Special 3D noise reduction function
Digital visual camera focus
Autofocus with Direct Focus Zoom synchronization
Memory
Internal high-speed SSD 128GB or 256GB for image and video recording External slot for Micro SD card & USB 2.0 for USB stick for taking images
